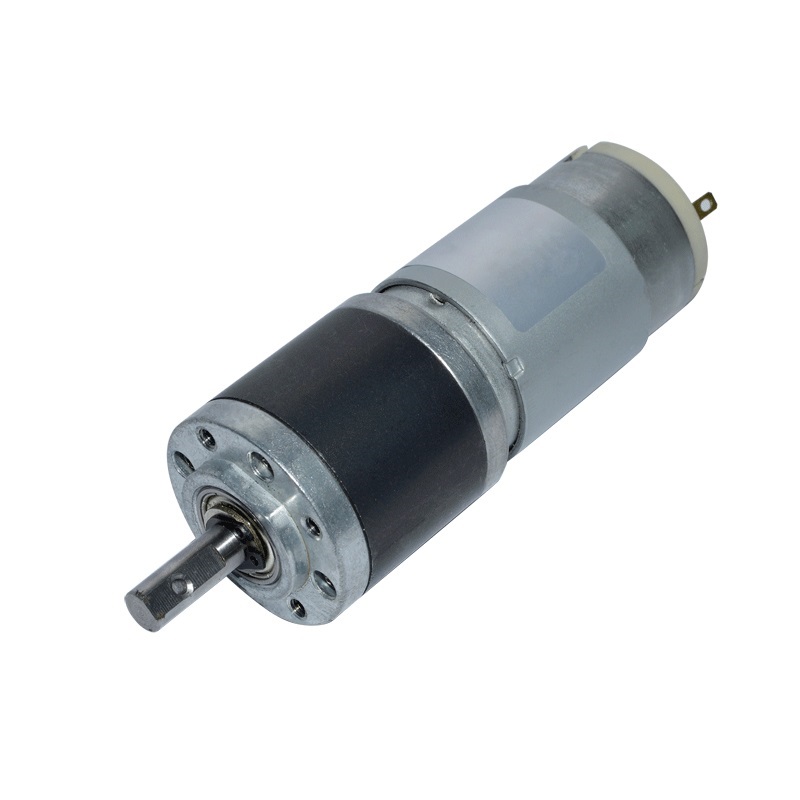

PGM32-A 32mm Planetary Gear Motor

Performance Range

Typical Applications

                Voltage:

                6~24VDC

                Precise Equipment

                Speed:

                1~2000rpm

                Robotics and Automation

                Torque:

                0.05-5N.m

                Safe and Locking

                Medical equipment

                Gear Ratio

                5

                51

                188

                977

                14

                71

                264

                1367

                19

                100

                369

                1911

                27

                139

                516

                2672

                721

Number of gear trains

1

2

2

2

3

3

3

3

4

Length (L) mm

26.4

32.6

32.6

32.6

39

39

39

39

45.3

No-load Speed r/min

1200

428

315

222

117

84

60

43

32

Rated speed r/min

900

320

236

166

88

63

45

32

23

Rated torque N.m

0.04

0.09

0.12

0.17

0.29

0.38

0.56

0.78

1

Max Torque N.m

0.5

1

1

1

2

2

2

2

3

Reduction Gear Ratio

264

369

516

721

977

1367

1911

2672

Number of gear trains

4

4

4

4

5

5

5

5

Length (L) mm

45.3

45.3

45.3

45.3

52.5

52.5

52.5

52.5

No-load Speed r/min

22

16

12

8

6

4

3

2

Rated speed r/min

17

12

9

6

4

3

2

1.5

Rated torque N.m

1.3

1.7

2.4

3.0*

3.0*

3.0*

3.0*

3.0*

Max Torque N.m

3

5

5

5

5

5

5

5

Remarks:

1. Planetary Gearbox output shaft dimension and shape can be customized, shaft can be D-Cut, with hole,screw hole etc.

2. DC Motor input speed can be customized.and gear ratio can be changed too,so gear motor can be with different final output speed rpm.

3.the dc motor is precise permanet magnet carbon brush dc motor.it can be with brushless dc motors too.

4.gear motor working voltage can be 6V, 9V,12V 24V. and can be equipped with magnet encoder.

5.This gearbox can be matched with other type DC Motors if you have different speed and torque requirements can be adjusted.

6.the gearbox is planetary type gearbox, it is widely used in all kinds of micro automation industry.main function-make high speed dc motor slow down by gear reduction.

7.this model gear motor main features- low noise,long lifespan,low rpm and high torque.the gearbox output shaft is center shaft.
