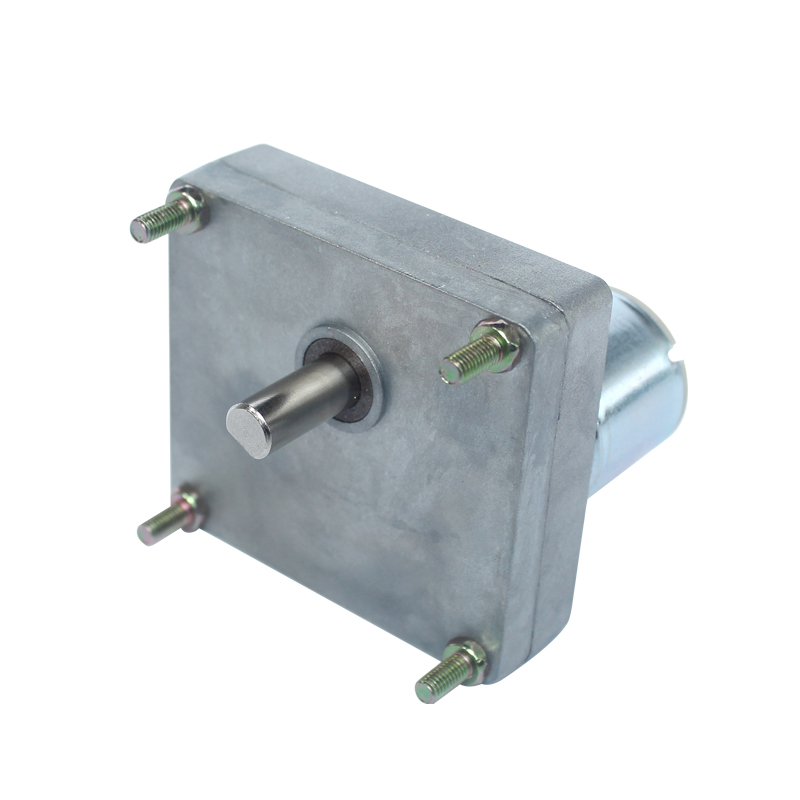

| 76mm LOW RPM High Torque Gearbox DC Motor | ||
| Performance Range | Typical Applications | |
| Voltage: | 6~24VDC | Fireworks Grill |
| Speed: | 0.1~50rpm | Robotics and Automation |
| Torque: | 1-150kg.cm | Home/Office Automation |
| Electric Valve and Actuator | ||
Gear Ratio
| Gear Ratio Stage | 4 | 5 | 6 | 7 | |
| Gear Ratio | 212 | 765 | 1105 | 3061 | |
| 307 | 818 | 1228 | 4592 | ||
| 409 | 6632 | ||||
| 9948 | |||||

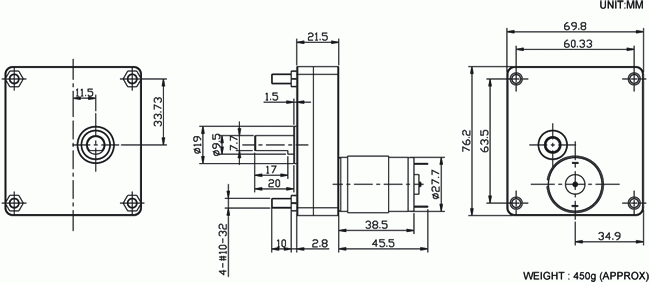

76mm Gear Motor Dimensions
76mm Gear Motor Data
| Serial Number | 60307 | 60409 | 60765 | 60818 | 601105 | 601228 | 603061 | 604592 | 606632 |
| No load speed rpm | 19 | 14 | 8 | 7 | 5 | 4.5 | 2 | 1.3 | 0.9 |
| Rated speed rpm | 15 | 11 | 6 | 5 | 4 | 3.5 | 1.5 | 1 | 0.7 |
| rated torque kg.cm | 14 | 18 | 25 | 38.6 | 52.2 | 57.9 | 100* | 100* | 100* |
| Max Torque kg.cm | 30 | 30 | 80 | 80 | 80 | 80 | 150 | 150 | 150 |
| Remarks: 1. Gearbox output shaft dimension and shape can be customized, shaft can be D-Cut, with hole,screw hole etc. 2. DC Motor input speed can be customized.and gear ratio can be changed too,so gear motor can be with different final output speed rpm. 3.the dc motor is precise permanet magnet carbon brush dc motor. 4.gear motor working voltage can be 6V, 9V,12V 24V. 5.This flat gearbox can be matched with other type DC Motors e.g. 550 555 755 775 etc. if you have different speed and torque requirements can be adjusted. 6.the gearbox is with metal spur gear, it is widely used in all kinds of micro automation industry.main function-make high speed dc motor slow down by metal gear reduction. 7.this kind of gear motor main features- low rpm,high torque,it is with very high gear ratio 6000:1, so lowest output speed can reach 0.2rpm. 8.other customized items-can be with wires,connector,DC Motor+encoder etc. | |||||||||
